Industrial Butterfly Valve Test Bench & Testing Equipment

API 598 & ISO 5208 Compliant Valve Testing Solutions

In industrial valve manufacturing and pipeline maintenance, verification of structural integrity and zero-leakage performance is paramount. As a premier heavy-duty equipment engineer, we design and build precision butterfly valve test bench systems engineered to handle rigorous shell and seat pressure verifications. Our advanced testing platforms provide global valve manufacturers, EPC contractors, and third-party inspection agencies with the accurate data required to certify elite pipeline assets before field deployment

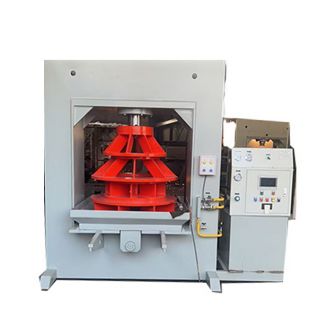

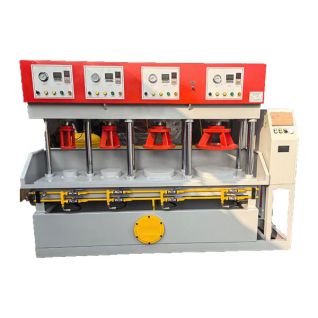

Every butterfly valve testing machine in our lineup is constructed using reinforced steel frames and high-yield hydraulic clamping mechanisms to ensure zero deformation during high-tonnage testing cycles. Engineered to accommodate both concentric and high-performance triple eccentric designs, these testing systems support multiple body configurations including wafer, lug, and double-flanged profiles.

Dual-Sided Sealing Inspection: Advanced hydraulic press systems allow independent or simultaneous upstream and downstream pressure isolation to verify bi-directional tight shutoff.

Smart Data Logging: Integrated digital pressure transducers and automated control interfaces record real-time hold times, pressure drops, and leakage rates, generating unalterable compliance reports.

Valve Pressure Ranges: Standard configurations support ANSI Class 150 to Class 600testing parameters, with customized high-pressure options available for severe-service specifications.

Multi-Media Hydrostatic & Pneumatic Testing Platforms

Efficiency in the testing bay directly dictates your facility’s production throughput. Our multi-functional valve hydrostatic test bench stations utilize high-efficiency liquid intensifier pumps to rapidly pre-fill and pressurize valve cavities with water or treated fluids. For low-pressure gas testing and high-pressure nitrogen seat verification, the systems seamlessly switch to pneumatic testing modes. Complete stainless steel reservoir recycling loops minimize water waste, keeping your testing environment dry, safe, and highly efficient.

Factory-Direct Supply & Technical Customization

As a dedicated butterfly valve test bench manufacturer, we understand that standard testing fixtures do not fit every production line or workshop layout. We provide comprehensive OEM and custom fabrication support—ranging from specialized blind flanges for large-diameter valves up to DN2000, to fully automated touch-screen PLCs with remote cloud diagnostics. Partner with a trusted China supplier to secure complete material traceability, rugged seaworthy packaging, and responsive engineering support.
