4inch Concentric Flanged End Butterfly Valve with Worm Gear

4inch Concentric Flanged End Butterfly Valve with Worm Gear

Product Attributes :

Specifications:

Size: DN50-DN1600

Pressure: PN10/PN16/150LB

Standard: ISO5211, DIN2501 PN10/PN16, DIN3202

Product Description

4 Inch Concentric Flanged End Butterfly Valve with Worm Gear - DN100 Flange Type Butterfly Valve

The 4 inch flanged butterfly valve is a concentric, resilient-seated flange type butterfly valve designed for ON-OFF and throttling service in water, HVAC, fire protection and general industrial pipelines. Bi-directional zero-leakage design with replaceable EPDM seat and reliable worm gear operator.

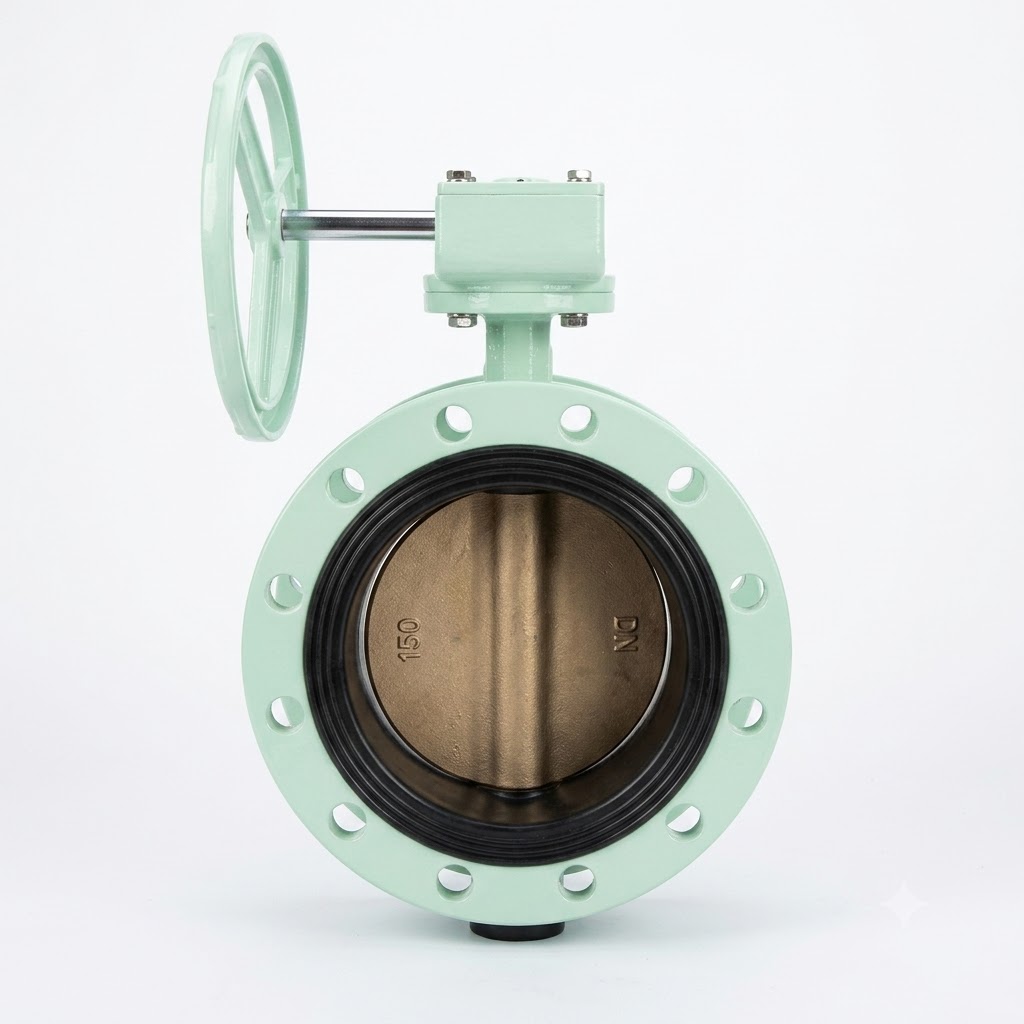

4 inch concentric flanged end butterfly valve DN100 with worm gear operator

Product Overview: Concentric Flanged Butterfly Valve DN100

This Concentric Flanged Butterfly Valve (Size 4 inch / DN100) features a one-piece flanged body cast in ductile iron GGG50, a mirror-polished disc, and an interference-fit EPDM rubber seat that guarantees bubble-tight shut-off in both flow directions. The flange type butterfly valve end connection allows direct bolting between DIN PN10/16, ANSI B16.1 Class 125/150 and BS 4504 flanges without gaskets, because the vulcanized seat also functions as the flange gasket and fully isolates the body from the media.

The turbine worm gear operator reduces operating torque, enables smooth 90-degree quarter-turn operation and provides a visible open/close position indicator. Adjustable travel stops at the fully open and fully closed positions ensure accurate flow control for every 4 inch flanged butterfly valve we ship.

Quick Specifications

Size: 4 inch / DN100 (DN40-DN600 available)

Pressure: PN10 / PN16, ANSI Class 125 / 150 optional

Body: Ductile Iron GGG50 / GGG40, epoxy coated

Disc: Nickel plated ductile iron, SS304 / SS316 optional

Seat: EPDM (NBR, FKM, PTFE optional)

Operation: Worm Gear Operator, 10:1 ratio

Temperature: -10°C to +120°C

Test: EN 12266-1 / API 598, 100% tested

Request a Quote View Flanged Valve Series

Key Features of the 4 Inch Flanged Butterfly Valve

Flanged Body

Ductile iron GGG50 one-piece flanged body, epoxy coated inside and outside (RAL 250/250μm), drilled to DIN PN10/16, ANSI 125/150 flange standards for universal interchangeability.

Concentric Disc

Concentric shaft-centered disc design with mirror-polished sealing edge ensures low torque, long service life and bubble-tight bi-directional sealing of the flange type butterfly valve.

EPDM Seat

Replaceable EPDM rubber seat is vulcanized directly into the body, compatible with drinking water (WRAS / KTW available), resistant to -10°C to +120°C and most water-based media.

Worm Gear Indicator

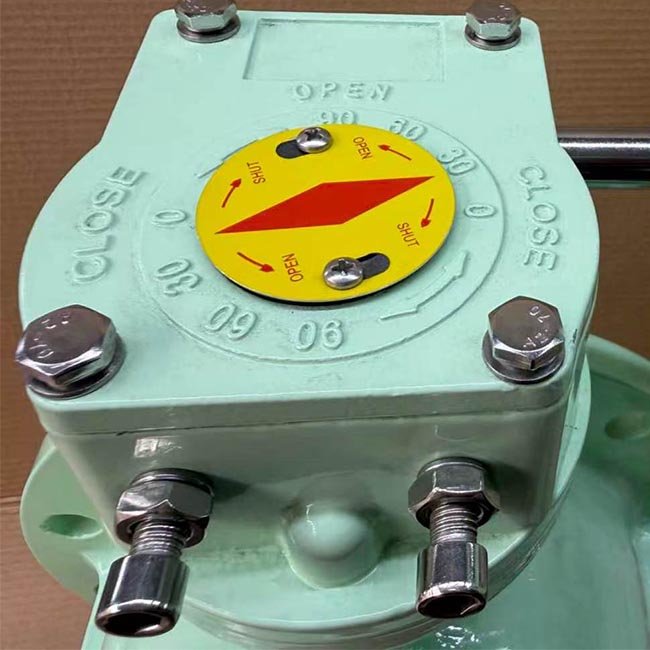

Cast iron worm gearbox with sealed grease chamber, self-locking worm mechanism holds disc position against backflow, and a clear yellow OPEN/CLOSE position indicator plate on top.

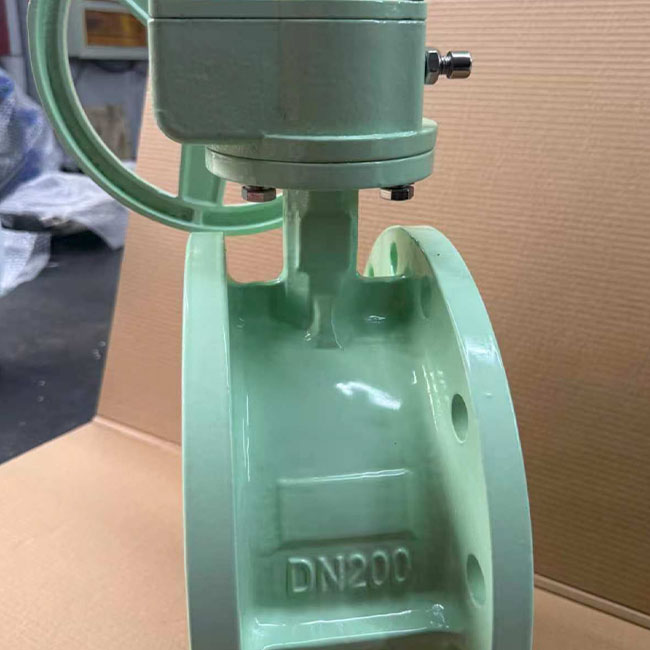

Body Marking

Every Concentric Flanged Butterfly Valve is permanently marked with DN size, pressure rating, body material and heat number for full traceability according to EN 19 / MSS SP-70.

Bi-directional Zero Leakage

The resilient seat is compressed by the disc in both flow directions, so the 4 inch flanged butterfly valve holds a tight seal regardless of installation orientation or reverse flow conditions.

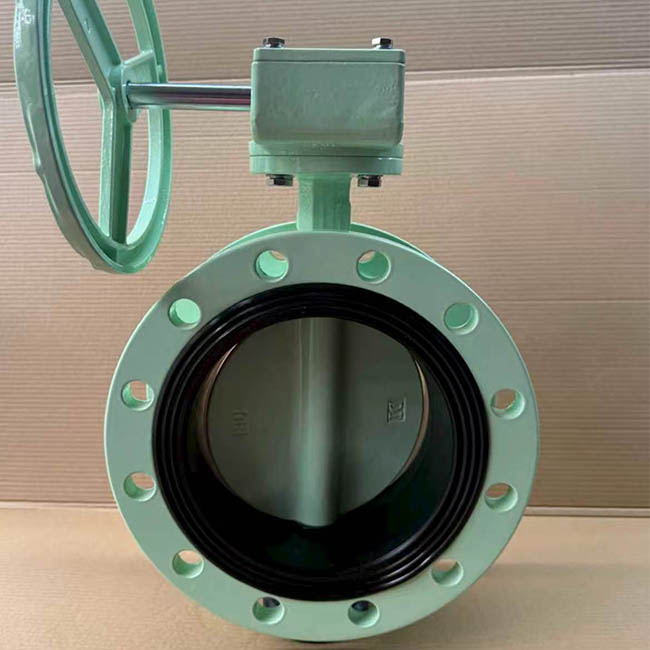

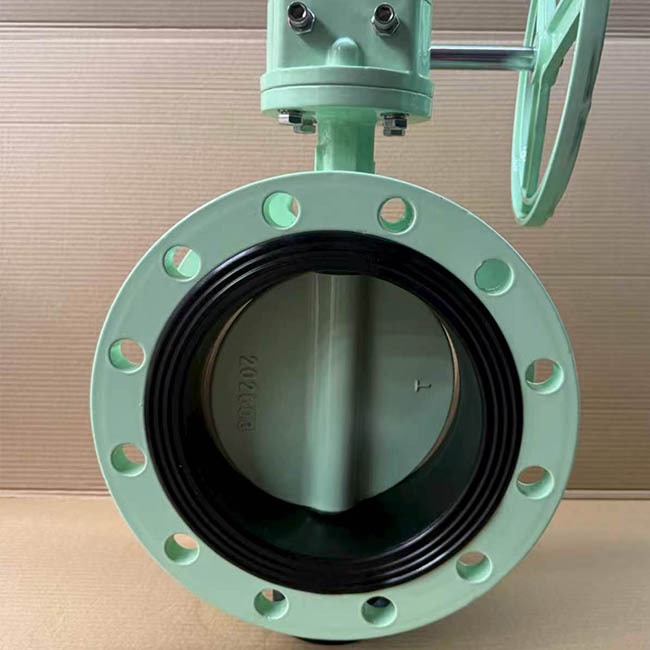

Concentric flanged butterfly valve DN100 ductile iron body with EPDM seat and worm gearbox

Technical Specifications - 4 Inch Flange Type Butterfly Valve

Technical data of the 4 inch / DN100 concentric flanged butterfly valve. Other sizes from DN40 to DN600 are available on request.
Item	Specification
Product Name	4 Inch Concentric Flanged End Butterfly Valve with Worm Gear
Valve Type	Concentric Flanged Butterfly Valve (Flange Type, Resilient Seated)
Nominal Size	4 inch / DN100 (DN40 - DN600 available)
Pressure Rating	PN10 / PN16 (ANSI Class 125 / 150 optional)
Body Material	Ductile Iron GGG50 / GGG40, Cast Iron GG25 optional
Disc Material	Ductile Iron with Nickel Plating, SS304 / SS316 / Bronze optional
Seat Material	EPDM (NBR, FKM/Viton, PTFE optional)
Stem Material	SS416 / SS420 / SS304, blow-out proof design
Operation	Worm Gear Operator (10:1 ratio), Lever, Electric or Pneumatic Actuator optional
Flange Standard	DIN 2501 PN10/16, ANSI B16.1 Class 125/150, BS 4504, JIS B2210
Face to Face	EN 558-1 Series 1 / ISO 5752 / MSS SP-67
Test Standard	EN 12266-1 / API 598, 100% pressure tested before shipment
Working Temperature	-10°C to +120°C (EPDM seat)
Media	Fresh water, sea water, sewage, HVAC water, oil, weak acids and alkalis

Note: Pressure rating, seat material and certification requirements should be confirmed against the datasheet for the ordered configuration.

Flange Connection Options

Standard	Drilling Pattern
DIN 2501	PN10 / PN16
ANSI B16.1	Class 125 / Class 150
BS 4504	PN10 / PN16
JIS B2210	5K / 10K
EN 1092-2	PN10 / PN16

Approvals and Quality Control

Item	Status
Quality System	ISO 9001 certified factory
Potable Water	WRAS / KTW seat material available
Fire Protection	UL / FM versions available on request
Pressure Test	Shell and seal test per EN 12266-1
Marking	DN, rating, material and heat number per EN 19

Application Scenes of Concentric Flanged Butterfly Valves

The 4 inch flanged butterfly valve is selected where a compact, fully flanged, bi-directional shut-off valve is required. Body, disc and seat materials should be matched to the actual medium, temperature and pressure before ordering.

Worm gear operated flanged butterfly valve installed on a municipal water supply header

Water Treatment and Water Supply

The 4 inch flanged butterfly valve is widely installed on inlet and outlet headers, pump stations and filtration lines in municipal water treatment plants. The WRAS-compliant EPDM seat makes this Concentric Flanged Butterfly Valve suitable for potable water networks, and the worm gear operator allows effortless operation even after long standby periods.

Concentric flanged butterfly valve used in HVAC chilled water and fire protection piping

HVAC and Fire Protection Systems

In building HVAC chilled-water loops and fire-fighting mains, this flange type butterfly valve replaces gate valves and globe valves thanks to its compact face-to-face length, light weight and quarter-turn shut-off. UL / FM certified versions are available for fire protection projects.

Wastewater and Sewage

Used on sewage transfer mains, grit chambers and sludge return lines. NBR or EPDM seat options suit slightly contaminated water service.

Irrigation and Pumping

Suitable for agricultural irrigation mains, booster stations and reservoir outlet lines where light weight and short face-to-face length reduce piping cost.

Power Plant Cooling Water

Applied on circulating water, auxiliary cooling and service water circuits. Larger sizes are supplied with a worm gear or actuator to keep handwheel torque manageable.

Marine and Shipbuilding

Considered for ballast, bilge and cooling-water lines. SS304 or SS316 disc and stem options should be reviewed for seawater duty.

Installation and Maintenance of the 4 Inch Flanged Butterfly Valve

Install the Concentric Flanged Butterfly Valve with the disc 15-20 degrees off the fully closed position during flange alignment to protect the EPDM seat edge from scratching. Use compatible flat flanges, center the disc clearance bores, then tighten bolts diagonally in several passes. The worm gear operator is maintenance-free under normal conditions; a quarterly open/close cycling test is recommended to keep the seat flexible. For long-term storage, keep the 4 inch flanged butterfly valve in a dry, ventilated warehouse with the disc slightly open.

Because the vulcanized seat also acts as the flange gasket, no additional gasket is required between the valve face and the pipe flange. Bolts should be long enough to span the valve face thickness, and the pipeline should be supported so that the valve body is not used to carry pipe weight.

Frequently Asked Questions (FAQ)

What is the difference between a concentric and a double eccentric butterfly valve?

A concentric flanged butterfly valve has the stem centered in the disc and body, giving zero-leakage resilient sealing with an EPDM seat. Double eccentric (high performance) valves use offset shafts with metal or PTFE seats for higher temperature and pressure. For water media below 120°C, the concentric design is the most economical choice.

Can this flange type butterfly valve fit both DIN and ANSI flanges?

Yes. The flanged body of our 4 inch flanged butterfly valve is drilled to DIN PN10/16 as standard; ANSI B16.1 Class 125/150, BS 4504 and JIS B2210 drilling patterns are available on request. Please confirm the flange standard when ordering.

How does the worm gear operator benefit operation?

The worm gearbox reduces handwheel torque by a 10:1 ratio, which is essential for DN100 and larger sizes. Its self-locking worm prevents the disc from slamming shut under backflow or pipeline vibration, and the top indicator clearly shows the open or closed position.

Is the valve suitable for throttling service?

The disc can be set at intermediate angles for flow regulation, and the worm gear holds that position without additional locking. For continuous throttling at small opening angles, review cavitation and velocity limits with our technical team before selection.

Can the valve be supplied with an electric or pneumatic actuator?

Yes. The same flanged body can be supplied with a lever, worm gear, electric actuator or pneumatic actuator. Please state the supply voltage, air pressure, control function and required fail position when requesting a quotation.

What is your MOQ and delivery time?

MOQ is negotiable; sample orders of the 4 inch Concentric Flanged Butterfly Valve are welcome. Standard sizes are usually in stock, with delivery within 7-15 days after payment. OEM branding and customized colors are supported.

Order Your 4 Inch Concentric Flanged Butterfly Valve Today

Contact us for free samples, the DN40-DN600 full size catalog and the factory price list of our flange type butterfly valve series. All 4 inch flanged butterfly valves are 100% tested per EN 12266-1 before shipment.

ISO 9001 Factory CE / WRAS Available OEM and ODM Welcome

Send Your Inquiry
