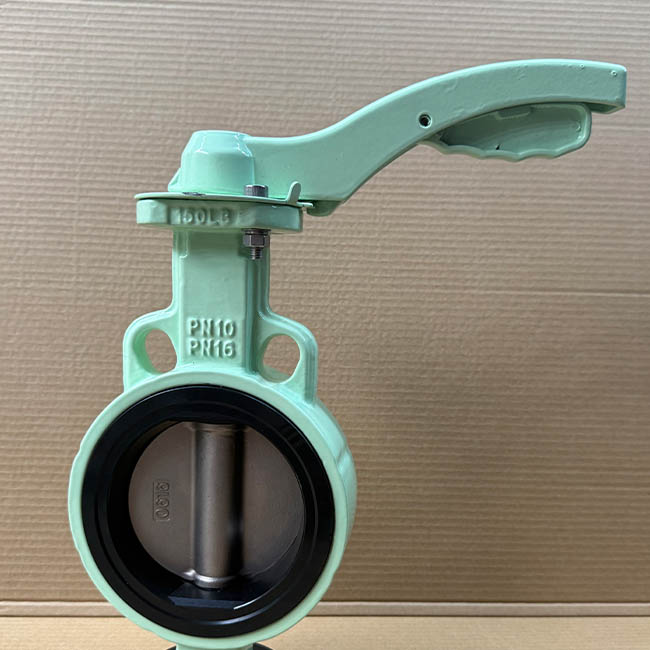

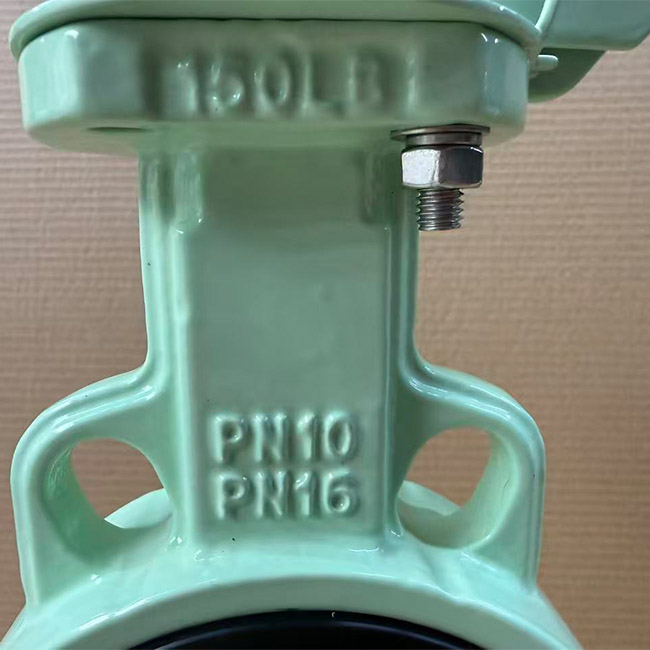

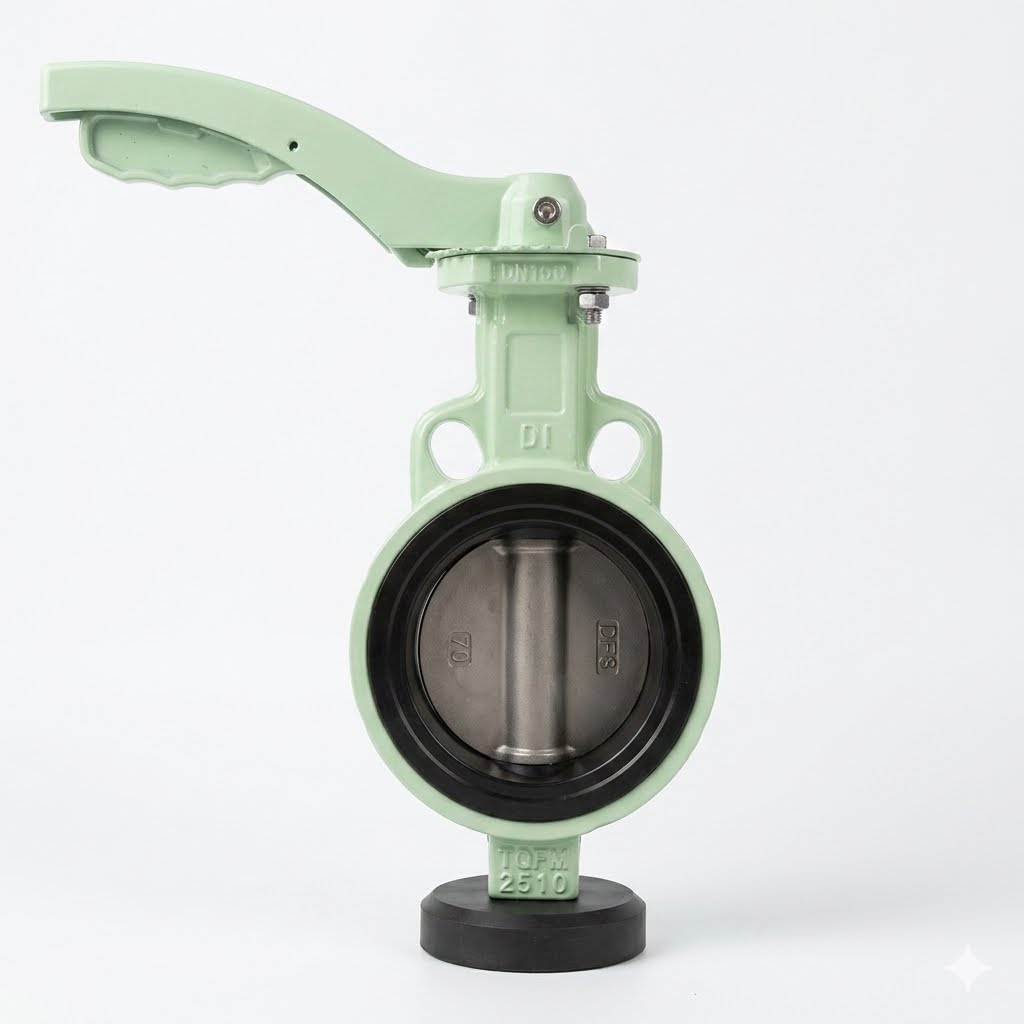

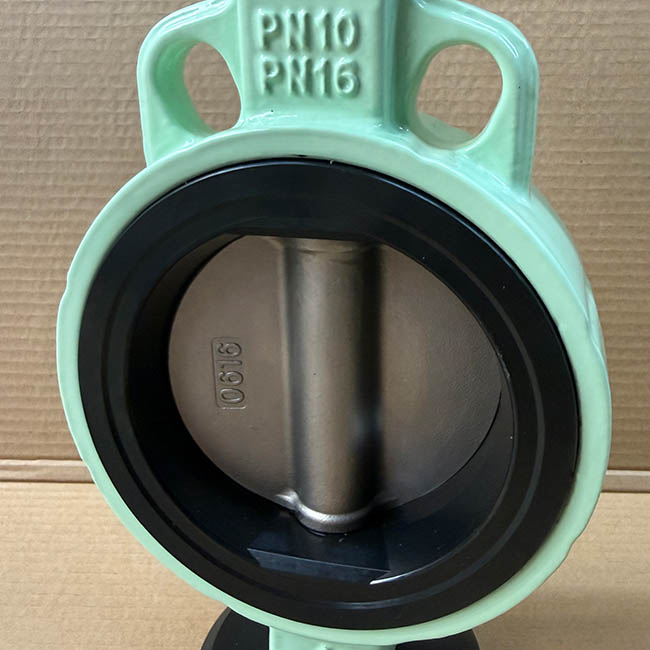

Cast Iron Wafer Type Butterfly Valve - EPDM Rubber Lined Wafer End Butterfly Valve
Size: DN40-DN1200
·
Pressure: PN10/PN16
·
Standard: Flange: DIN3202, DIN2501 PN10/PN16
Face to face: BS5155
Top Flange: ISO5211
Rubber Lined Wafer Butterfly Valve - PN10 / PN16
Rubber Lined Butterfly Valve | Cast Iron Wafer Type Butterfly Valve Manufacturer
Our rubber lined butterfly valve series is a soft-seal, quarter-turn regulating valve engineered for on-off control of low-pressure pipeline media such as PN10 and PN16 water lines. The compact cast iron wafer type butterfly valve body fits between standard pipe flanges, saving space and installation cost in HVAC, water treatment, food, medicine and general industrial pipelines.
- Nominal diameter: DN50 - DN1000 (2" - 40")
- Pressure rating: PN10 / PN16
- Working temperature: up to 120°C
- Design: MSS SP-67, API609, EN593
- Test & inspection: API 598
- Operation: lever, worm gear, pneumatic, electric

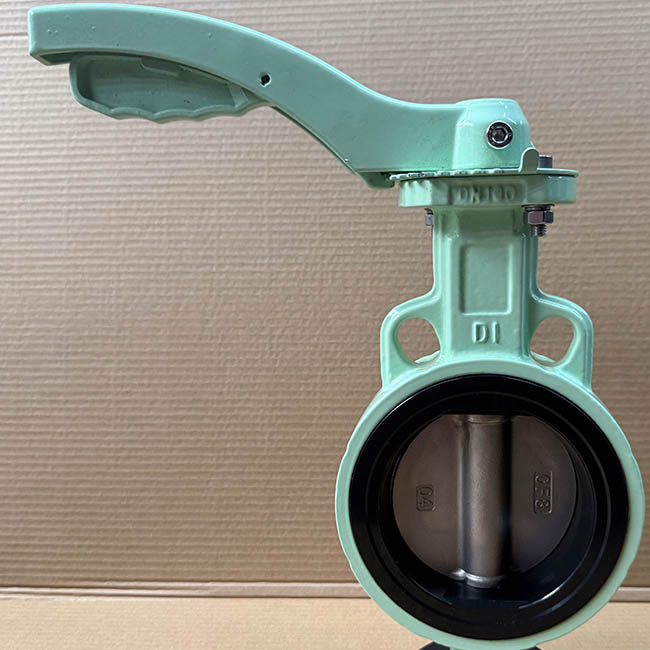

Key Features of Our Butterfly Valve with Lever
Simple Structure
Butterfly valve with lever has a simple structure that is easy to install and maintain, reducing downtime and labor cost.
Low Torque
Small opening and closing torque with a long service life, suitable for environments with frequent operations.
Bubble-Tight Sealing
EPDM lined butterfly valves technology ensures good sealing performance and prevents fluid leakage effectively.
Versatile Media
Choose different parts materials to handle water, sewage, sea water, air, vapor, food, medicine, oils, acids and alkalis.
Specifications
| Nominal pressure (MPa) | 1.0 | 1.6 |
| Nominal diameter (mm) | 50 - 1000 | 50 - 1000 |
| Test pressure (MPa) - Shell | 1.5 | 2.4 |
| Test pressure (MPa) - Seal | 1.1 | 1.76 |
| Applicable temperature | 120°C | |
| Applicable medium | Water, sewage, sea water, air, vapor, food, medicine, oils, acids, alkalis, etc. | |
| Operating mode | Manual, worm gear, pneumatic, electric, etc. | |
Design & Manufacturing Standards
| Design & Manufacture | MSS SP-67, API609, EN593 |
| Flange connection | DIN PN10/16/25, ANSI B16.1, BS4504, ISO PN10/16, JIS B2212/2213, BS 10 Table D/E |
| Face to face dimension | API609, ISO5752 series 20, BS5155 |
| Test & inspection | API 598 |
Material Combination
| No. | Part name | Material |
| 1 | Body | Carbon steel / stainless steel / cast iron / ductile iron / Al-bronze |
| 2 | Disc | Al-bronze / CF8M / ductile iron / WCB |
| 3 | Seat | EPDM / PTFE / Buna / NBR / Hypalon / Viton |
| 4 | Stem | SS410 / SS304 / SS420 |
| 5 | Bushing | PTFE / lubricating |
| 6 | O-ring | EPDM / PTFE / Buna / NBR / Hypalon |
| 7 | Pin | SS316 / SS416 / SS304 |
Typical Application Scenarios
The rubber lined butterfly valve, also called soft seal butterfly valve, is widely used for cutting and intercepting media such as air, water, steam, corrosive fluids, mud, oil and even liquid metal in pipelines. Below are the most common industrial applications of our wafer end butterfly valves.
HVAC & Building Services
PN16 butterfly valves with EPDM seat provide reliable isolation for chilled water, cooling water and condenser lines in commercial HVAC systems.
Water Supply & Sewage Treatment
Cast iron wafer type butterfly valves are ideal for municipal water distribution, pumping stations and sewage treatment pipelines up to DN1000.
Food, Medicine & Light Industry
Stainless steel body and food-grade rubber seats meet hygiene requirements in food, beverage and pharmaceutical processing lines.
Marine & Sea Water Systems
Al-bronze disc with NBR or Hypalon seat resists sea water corrosion in shipbuilding, offshore platforms and coastal power plants.
Chemical & Petrochemical
Viton and PTFE lined butterfly valves handle acids, alkalis and aggressive chemical media with excellent chemical resistance.
Automated Flow Control
Pneumatic and electric actuated rubber lined butterfly valves support remote operation in automated production and utility networks.
High-Performance Industrial Fluid Control Solutions
In the competitive landscape of industrial infrastructure, the reliability of your flow control components is non-negotiable. Our premium rubber lined butterfly valve series is engineered to provide superior sealing integrity and long-term operational stability for the most demanding applications. Whether you are managing complex HVAC networks, municipal water distribution or specialized industrial processing, our valves deliver consistent, bubble-tight performance that keeps your facility running at peak efficiency.
Why Choose Our Engineered Wafer End Butterfly Valve?
Our cast iron wafer type butterfly valve is built for engineers who prioritize both structural strength and installation efficiency. The robust cast iron body withstands harsh operating conditions, while the compact wafer end butterfly valve design allows rapid, space-saving installation between standard pipe flanges - significantly reducing downtime and labor costs for modern industrial upgrades.
Precision Sealing: Each unit features high-grade EPDM lined butterfly valve technology, ensuring an airtight, watertight seal critical for maintaining system pressure and environmental compliance.
Versatile Compatibility: As a versatile wafer end valve, it integrates seamlessly into existing piping infrastructures with DIN, ANSI, JIS and BS flange standards.
Built to Last: Advanced manufacturing ensures every rubber lined butterfly valve resists chemical degradation and mechanical wear, a dependable workhorse in your piping network.
Contact Our Sales Team Today
Request a technical data sheet or a personalized volume-based quote for your upcoming project. Competitive pricing, robust inventory management and factory-direct quality.
