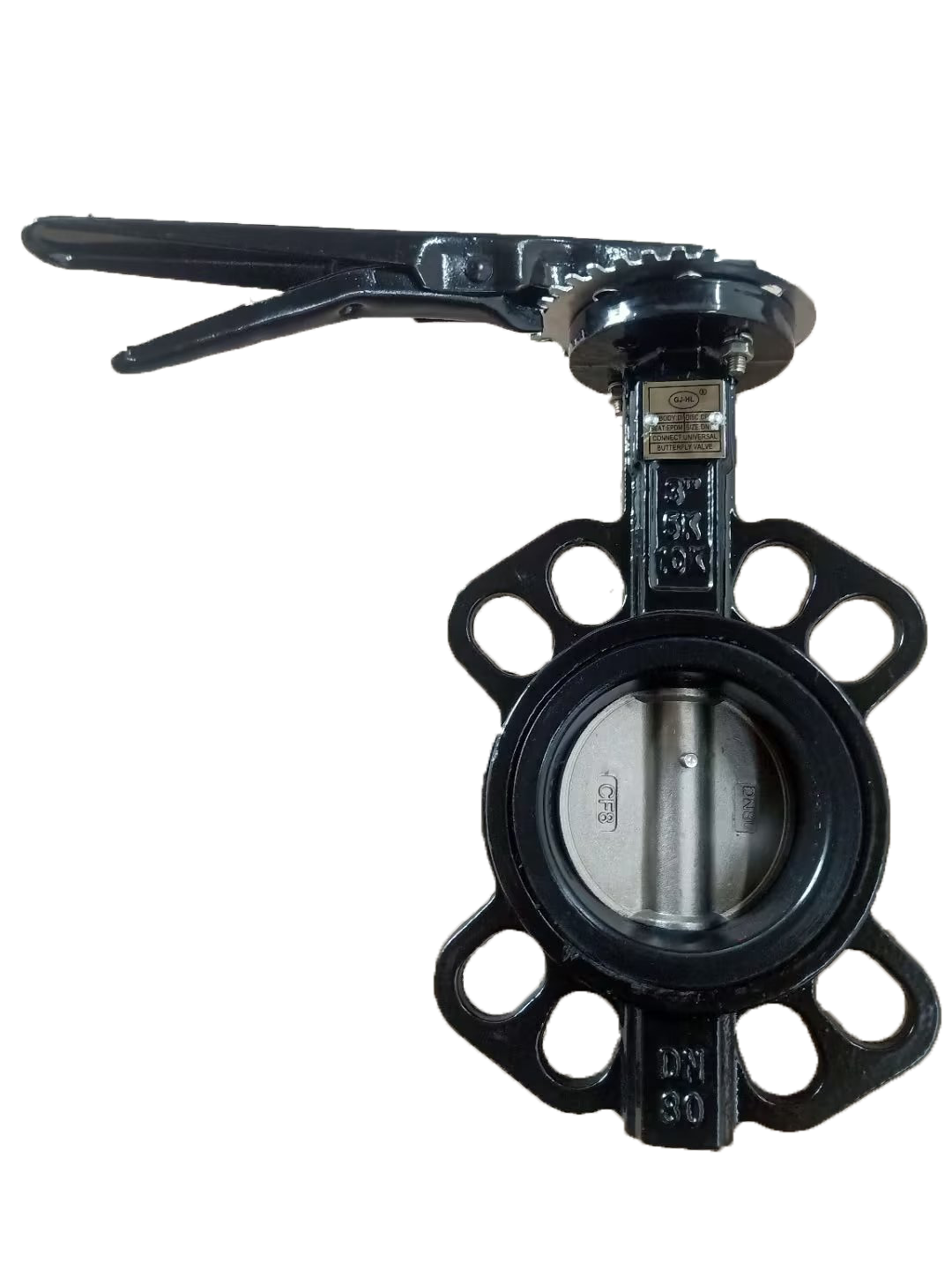

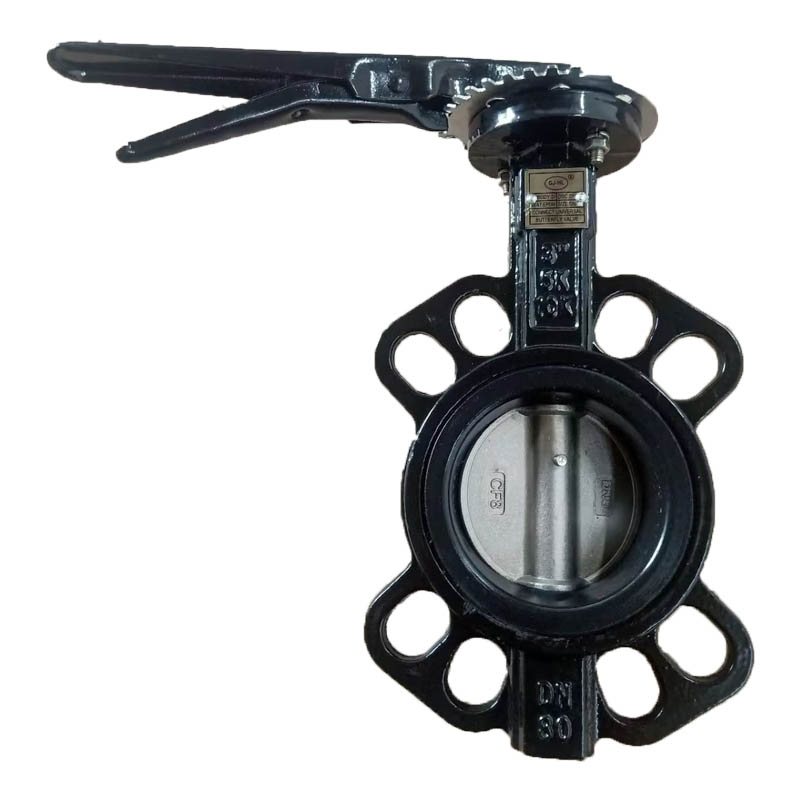

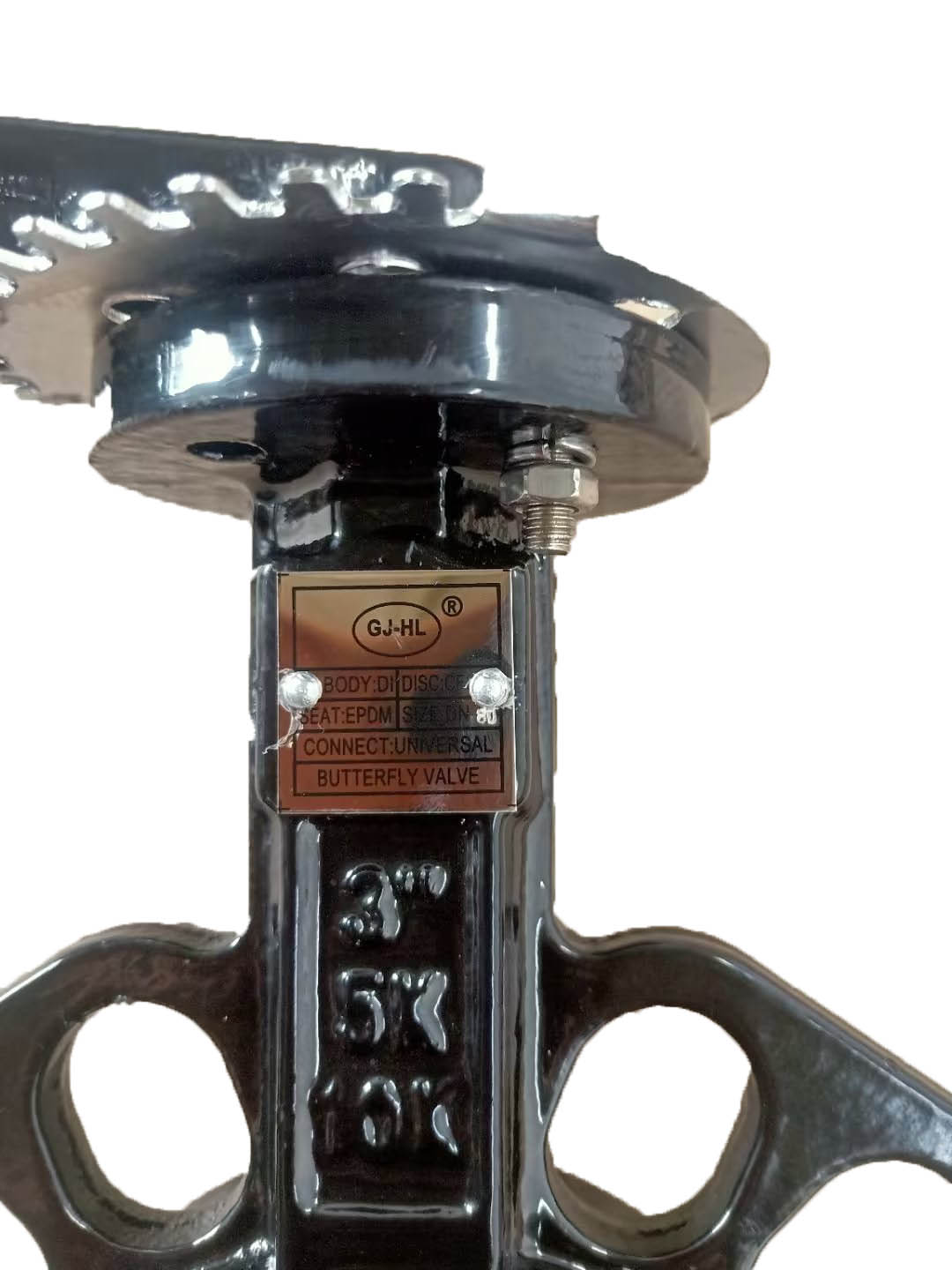

Ductile iron 3 inch butterfly valve wafer type
Specifications:
·
Size: DN25-DN1200/1.5"-48"
·
·
Pressure: PN10/PN16/25
·
·
Standard: Flange: DIN3202, DIN2501 PN10/PN16, Face to face: BS5155
Top Flange: ISO5211
Specifications:
|
Nominal pressue (MPa) |
1.0 |
1.6 |
|
|
Nominal diameter(mm) |
50-1000 |
50-1000 |
|
|
Test pressure |
Shell |
1.5 |
2.4 |
|
(MPa) |
Seal |
1.1 |
1.76 |
|
Applicable temperature |
120℃ |
||
|
Applicable medium |
water, Sewage, Sea water, Air, Vapor, Food, Medicine, Oils, Acids, |
||
|
Operating mode |
manual, worm gear, pneumatic, electric, etc. |
||
Standards:
|
Design & Manufacture |
Flange Connection |
Face to Face Dimension |
Test & Inspection |
|
MSS SP-67 |
DIN PN10/16/25; ANSI B 16.1 |
API609 |
API 598 |
Material:
|
No. |
Part Name |
Material |
|
1 |
Body |
Carbon Steel/Stainless Steel/Cast Iron/Ductile Iron/ Al-Bronze |
|
2 |
Disc |
Al-Bronze/CF8M/Ductile iron/WCB |
|
3 |
Seat |
EPDM/PEFE/Buna/NBR/Hypalon |
|
4 |
Stem |
Carbon Steel/Stainless Steel314/Stainless Steel 316 |
|
5 |
Bushing |
PTFE/Lubricating |
|
6 |
O ring |
EPDM/PEFE/Buna/NBR/Hypalon |
|
7 |
Pin |
SS316/SS416/SS304 |
· The Wafer Type Butterfly Valve is available in Buna-N, EPDM and Viton® configurations.
· A fully-lined elastomer seat provides complete isolation of the process media from the ductile iron wafer type butterfly valve body.
· All internal support hardware, including discs, braces and brackets are manufactured of corrosion-resistant stainless steel.
· The wafer butterfly valve 2″ through 48″ body sizes available in Class 150/PN16 ratings.
· Wafer type butterfly valve body design includes ISO 5211 mounting pad for international standard manual ( handle /gearbox )and automated (Electric actuator /Pneumatic actuator )operators.
· Elastomer U-cup seal packing gland and PTFE shaft bushing provide for superior leak protection.
· All wafer type valve are designed in accordance with API609 and tested to API598.
