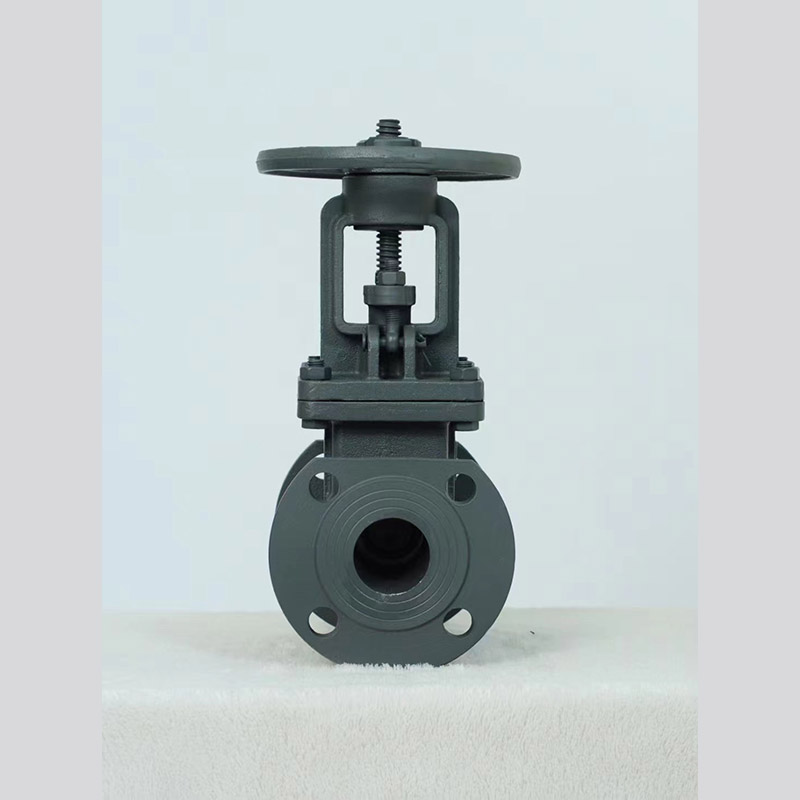

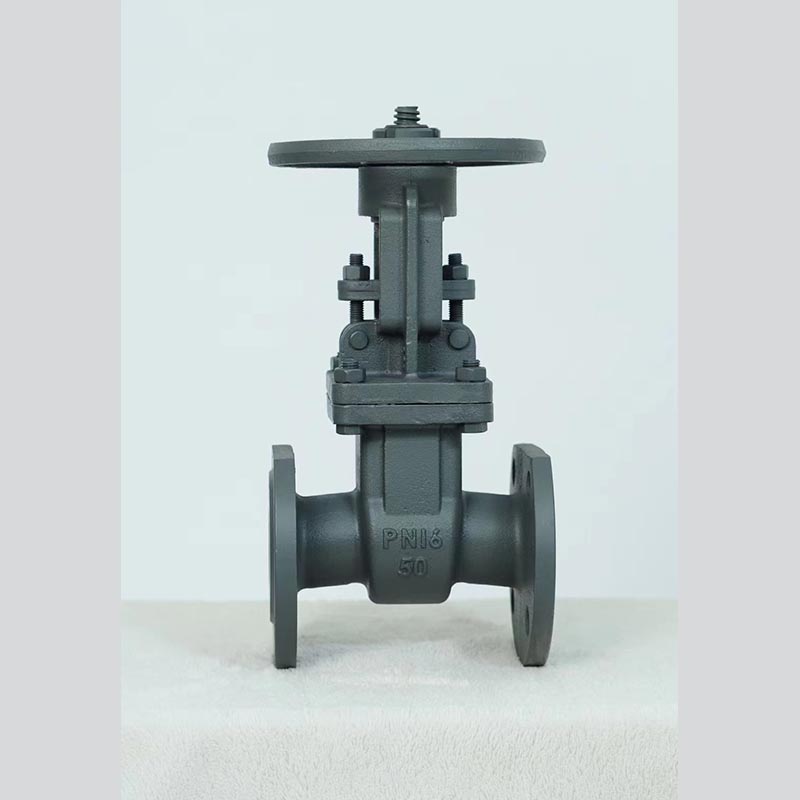

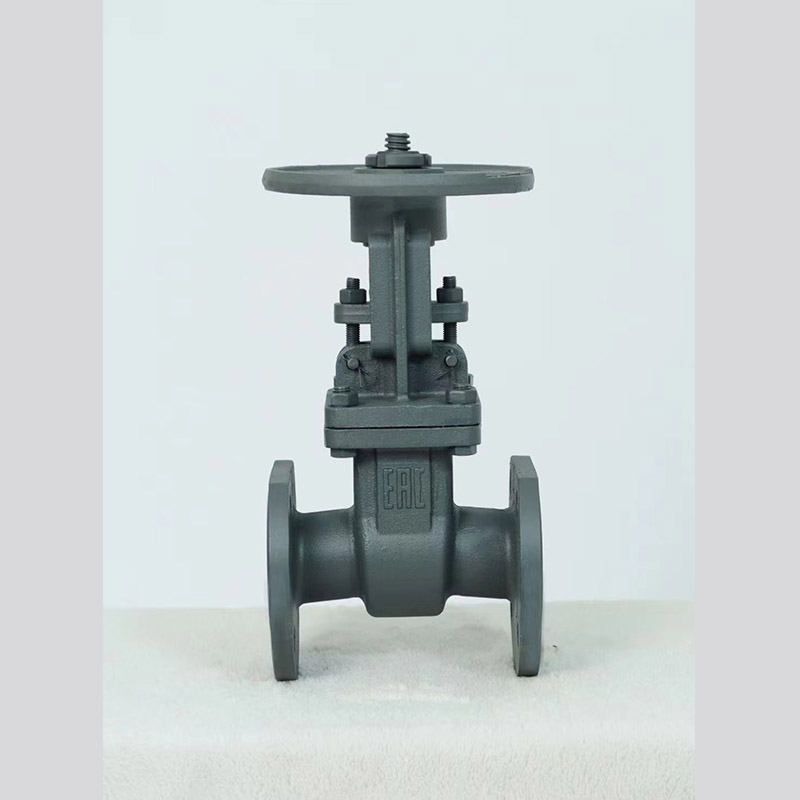

Z41H-16C carbon steel metal seated gate valve
Product Attributes :
Type : Z41H-16C
Nominal Pressure : 1.6MPa
Strength (water ):2.4MPa
Seal (water): 1.8MPa
Working Temperature : water ,steam ,oil
Product Description
| Materials Of Main Parts ： | |
| Part Name | Material |
| Body | WCB |
| Seat | 13Cr |
| Bonnet | WCB |
| Disc | WCB+13Cr |
| Stem | WCB / 2Cr13 |
| Stem nut | DI /Brass |

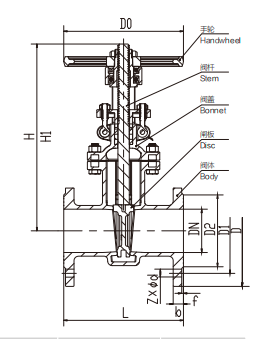

Dimensions & Connection Dimension
| DN | L | D | D1 | D2 | b-f | Z*Ød | H |
| DN50 | 180 | 160 | 125 | 102 | (16-2) | 4*Ø18 | 285 |
| DN80 | 210 | 195 | 160 | 133 | (18-2) | 4*Ø18 | 329 |
| DN100 | 230 | 215 | 180 | 158 | (20-2) | 8*Ø18 | 390 |
| DN125 | 255 | 245 | 210 | 185 | (22-3) | 8*Ø18 | 451 |
| DN150 | 280 | 280 | 240 | 212 | (24-3) | 8*Ø22 | 513 |
| DN200 | 330 | 335 | 295 | 268 | (26-3) | 12*Ø22 | 636 |
| DN250 | 450 | 405 | 355 | 320 | (27-3) | 12*Ø26 | 739 |
| DN300 | 500 | 460 | 410 | 370 | (27-3) | 12*Ø26 | 854 |
